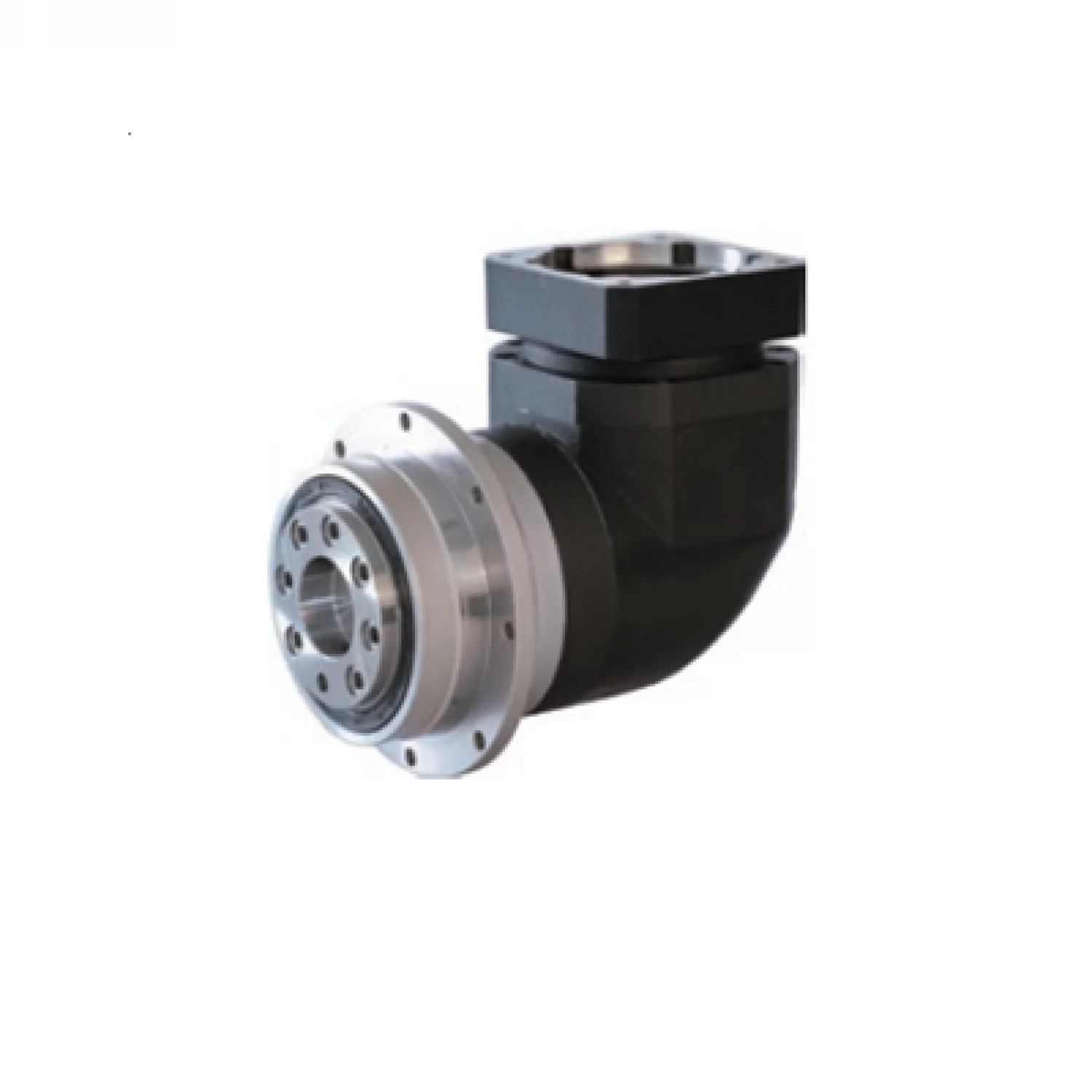

Right Angle Planetary Gear Head

Most machine layouts are not linear, in fact, in many automated systems, there is not enough motor mounting space for direct inline motor operation. The Right Angle Servo Gear Box was developed to meet alignment needs and maintain precision while being flexible for application variances. We manufacture all of our Right Angle Servo Gear Box from our facility in Ahmedabad, which allows us to supply our customers with the best possible assembly and engineering solutions throughout the states of Gujarat and other parts of India.

The design of the Right Angle Servo Gear Box allows for 90-degree transmission of power and provides the capability to provide motion control within exact specifications. Backlash control is very important in servo applications; therefore, we ensure that the machining processes and assembly procedures are conducted with close tolerance. Additionally, the rigidity of the housing is verified, as any flex will hinder accurate positioning. Further, during testing we evaluate the amount of heat generation as servo motors are designed to operate at different loads and speeds.

The torque requirement, load inertia and duty cycle will determine the selection of gear ratios. For CNC machines and robotics systems, it is critical that positioning remains consistent. It is equally important to achieve repeatable operations throughout the entirety of the equipment life cycle for indexing and packaging equipment. In order to provide the best recommendation for gear selection, we evaluate the actual working conditions prior to providing a recommendation.

Before sending to the customer, each Right Angle Servo Gear Box is checked for proper alignment, smooth rotation and noise levels prior to shipment. We offer reliable servo transmission solutions to all customers, including those in Ahmedabad, Gujarat, India and beyond, with unmatched technical support and prompt deliveries.
